Many medium-speed box-product packaging lines still require manual feeding into shipping cartons, which limits output and introduces human error risk. The ZY-CP450 side-push packing line collates box-shaped goods first, then horizontally pushes the whole grouped batch into the pre-erected outer carton. There is no vertical dropping action, protecting box appearance and printed surface. Each station is equipped with independent sensor monitoring for missing-product, carton offset and overload. Once abnormal condition occurs, the line triggers alarm and protective halt. The frame combines carbon-steel, 304-stainless-steel and aluminum profiles. Compared with standalone case-packing machines, this integrated production-line layout contains carton erector, collation-push packing, sealing and inspection in one connected workflow, perfectly matching large-scale continuous-run requirements for pharma and daily-chemical factories.
Automatic Side Push Packing Production Line
Machine Overview & Line Stations
Automatic Side Push Packing Production Line
ZY-CP450 automatic side push packing production line, unmanned end-of-line carton packing line, max 4800 boxes/h, with missing-box & position detection for pharmaceutical and daily-chemical goods.
The ZY-CP450 Automatic Side Push Packing Production Line is dedicated full-automatic unmanned packaging solution for end-of-line case packing. It can realize complete unattended box packing workflow. Multiple built-in detection functions include missing-box inspection, incoming-product detection, overload protection and carton-position monitoring. Full-process monitoring and controllability are achieved during production. This line performs carton opening, side-push boxing, sealing and carton-out inspection in sequence, suitable for large-volume mass-production of pharmaceutical and daily-chemical boxed goods.
Kinematic Sequence of Operation
Automatic Carton Erecting
Blank flat shipping cartons are fetched from magazine, opened and bottom-sealed for subsequent side-push loading.
Why Deploy This Machine: Core Engineering Advantages
Vibration-damped structural steel base milled on 5-axis CNC machines for zero resonance during continuous 50+ cpm cycles.
Full Unattended Packing Workflow
Horizontal Batch Side-Push Loading
Missing-Box & Position Monitoring
For Pharma & Daily-Chemical Mass-Run
ZY-CP450 side-push packing production line acts as a complete end-of-line workflow node. Up-stream it receives interlock handshake signals from primary cartoning machines and product conveyors, synchronizing its running speed according to upstream incoming box flow. Down-stream sealed finished cartons are delivered to downstream conveyor toward palletizing stations. Production counter values, fault alarm records and running-status data can be uploaded to factory SCADA / MES systems. It supports standard industrial PLC-based handshake signals to coordinate upstream and downstream automation equipment for realizing fully-unmanned packaging workshop operation.
Technical Specifications & Machine Tolerances
SZP-500 explosion-proof opening-loading-sealing integrated box packing machine is a fully-automatic end-of-line packaging device integrating carton erecting, stacking, loading and case sealing. This integrated packaging line adopts full-servo control with missing-box detection, incoming-material detection, overload protection and carton-position monitoring across all workstations for full-process traceability and controllability. Equipped with dedicated explosion-proof electrical cabinets and actuators, this case packaging machine is purpose-built for aerosol products. It seamlessly interfaces with downstream palletizing systems to deliver a complete hazardous-zone end-of-line packaging workflow for chemical and aerosol manufacturing.

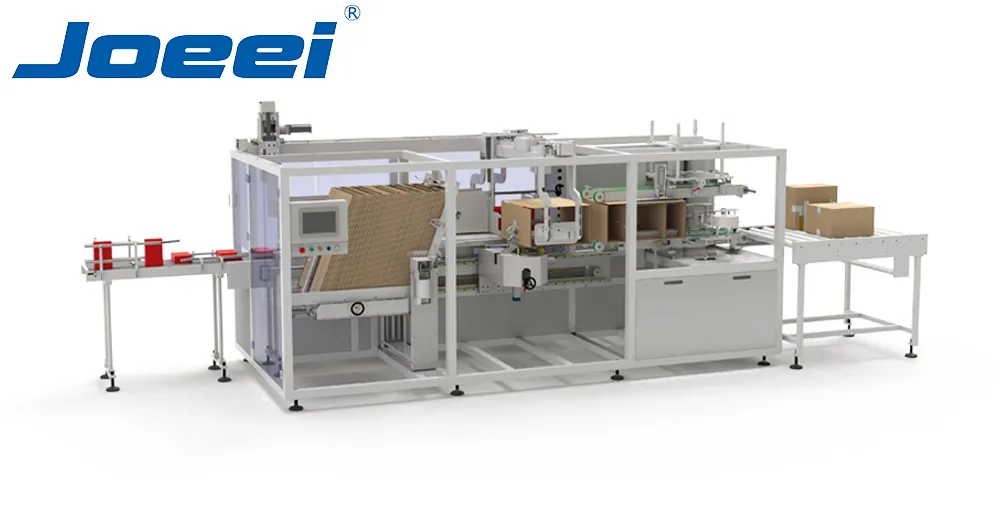

The ZCP-500 fully-automatic integrated side-push case packing machine is a compact 3-in-1 end-of-line unit combining case erecting, side-push case packing and bilateral side case sealing. Equipped with 11 sets of servo motor motion controllers, this all-in-one case packer performs carton opening, product loading, tape or hot-melt adhesive sealing automatically. It greatly reduces manual labor intensity. Users may configure for different packing specifications to satisfy diversified box-loading requirements. The machine adopts full-servo carton pulling and dual-servo side-push packing with bilateral side sealing layout. With compact footprint, it is well suited for packing box-style goods in pharmaceutical, food and daily-chemical production lines, and can connect with upstream grouping conveyors and downstream case handling stations.
Engineering Q&A: Machinery & Tooling
It supports fully-automatic unmanned boxing workflow. Multiple built-in sensors detect missing-box, product feed and carton offset, achieving full-process monitoring for large-scale pharma and daily-chemical production.
Working range 80-500 boxes per minute (affected by box dimension & packing quantity), maximum hourly output 4800 boxes/h.
Shipping carton dimension range (300-600)×(200-450)×(200-300) mm for box-type packaged items.
Carbon-steel, 304-stainless-steel and aluminum profile, suitable for pharmaceutical and daily-chemical production workshops.
Yes, it supports PLC interlock handshake, synchronizing speed with upstream box-output and feeding finished cartons downstream toward palletizing station.
